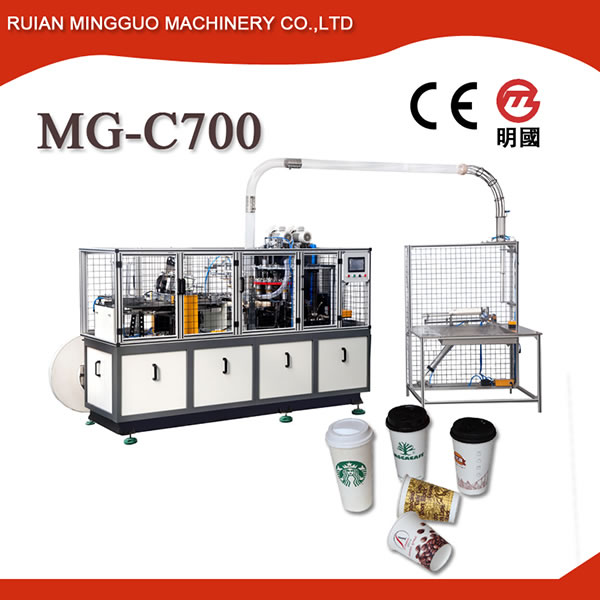

Medium Speed Paper Cup Forming Machine MG-C700

Paper cup forming machine, hot sale paper cup machine, coffee cup making machine, ce certificate coffee cup forming machine, disposable paper cup making machine,paper container forming machine

MG-C700, a newly developed paper cup machine, achieves a manufacturing speed of 65-75pcs/min. This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage cups, ice cream cups, coffee cups, bubble tea cups and more. In addition to that, this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting.

Advantages of Paper Cup Machine

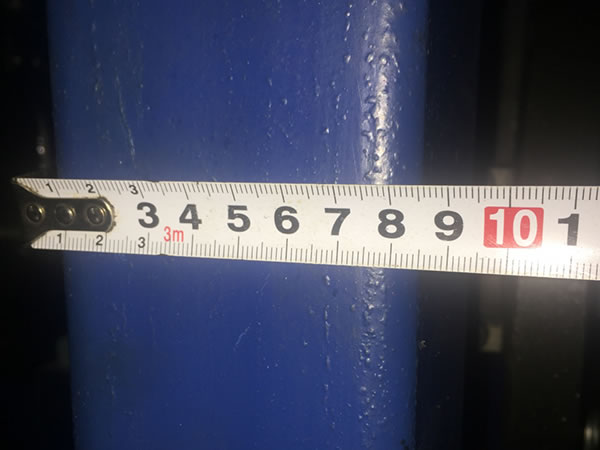

  • Made using 8cm high-strength steel, the product weighs 2,800kg and shows high stability in operation.

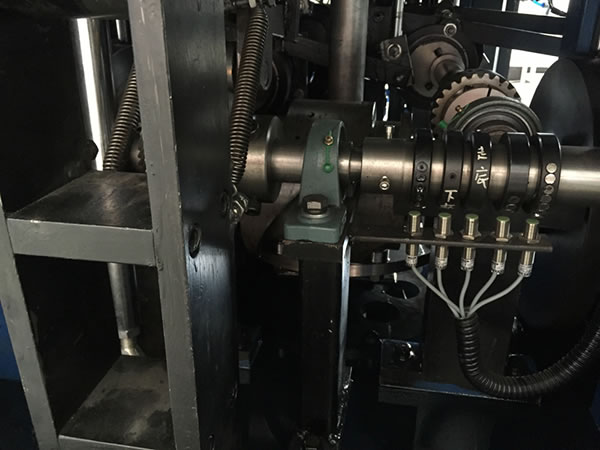

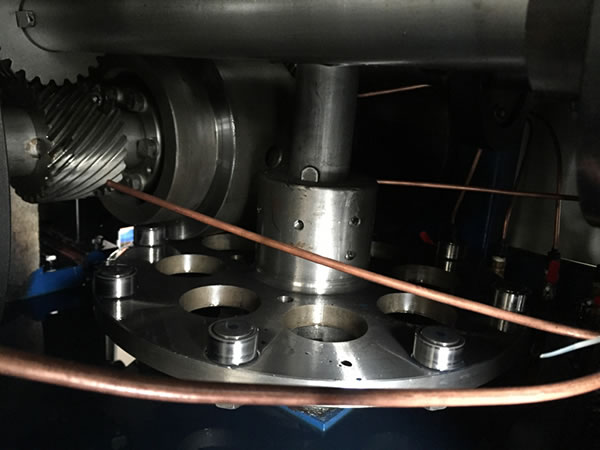

  • For transmission, this paper cup former makes use of high quality cams and gearwheels, instead of chains and gearboxes.
  • One outstanding of this forming machine lies in an automatic lubrication system. It provides a guarantee that all machine parts work at optimum efficiency for a long time.
  • The advanced heating technique contributes zero leakage of drink cups produced by this machine.
  • The PLC (Programmable Logic Controller) will shut down the machine immediately when any malfunction or error is detected.
  • Four shafts are used for paper feeding and cup clamping.
  • In comparison to cup makers from other companies, this paper cup forming machine is designed with an automatic curling system. It ensures a simply easy operation.

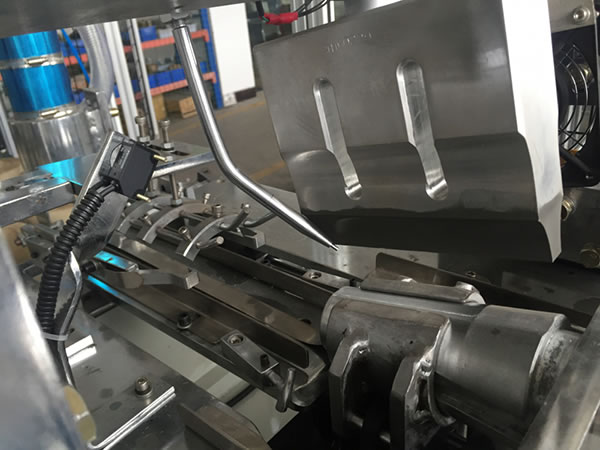

  • Ultrasonic is applied to seal single or double PE coated paper cups.

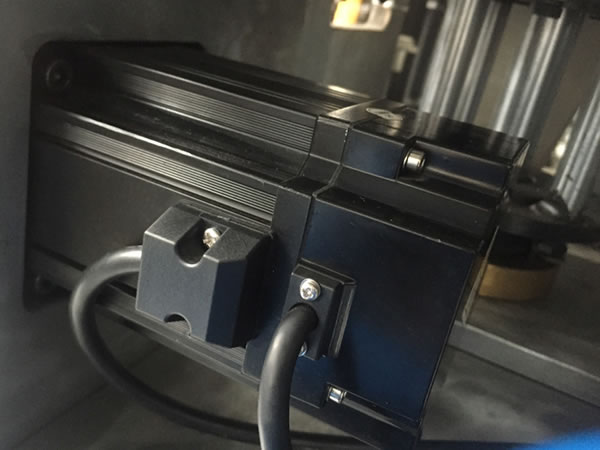

  • This modern servo motor greatly raises the paper feeding efficiency.

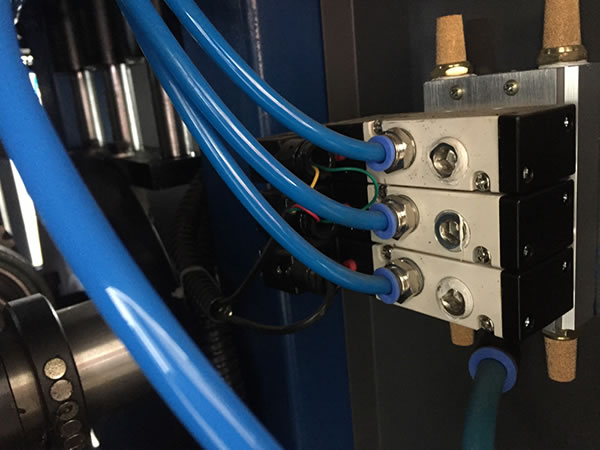

  • The medium speed paper converting maker is equipped with a vacuum generator, which compared to cylinder provides much more stable air. Not only that, the generator also saves plenty of space for the machine.
  • Robust and flexible arms are used for dropped cups.

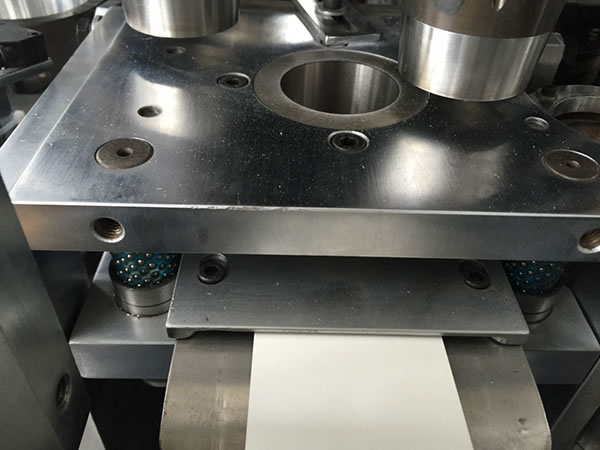

  • The installed stretchable knife highly reduces the cutting time and cup bottom waste.
Main Technical Parameters
Cup capacity 2-12OZ
Paper material 140-350GSM
Production capacity 65-75pcs/min
Total power 7KW
Air consumption Pressure: 0.4Mpa, input: 0.6m3/min
Machine weight 3000KG
Size 2650mm*1300mm*1800mm
Video link https://www.youtube.com/watch?v=SSRkeVyhUOU&nohtml5=False
Main Parts
Item Brand Original
Main Motor+ Gear reducer Tianhong
Knurling motor +Gear reducer GPG Taiwan
Bottom motor +Gear reducer GPG Taiwan
Bottom stepping motor GPG Taiwan
Lubrication Motor Limada Shanghai

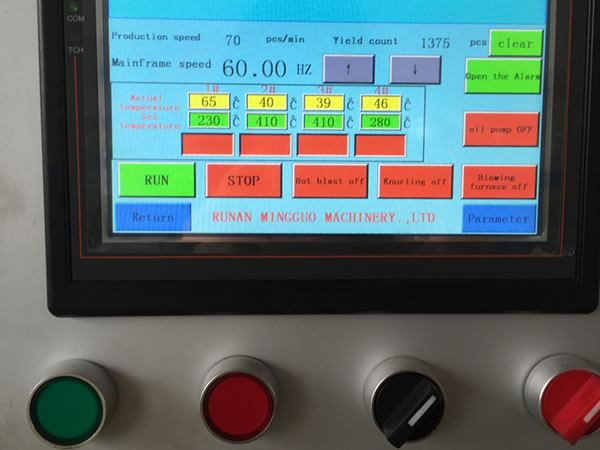

Touch screen VEICHI Guangzhou
Relay Schneider Germany
Exchange parts Schneider Germany
Sensor Moron Germany
Driver VEICHI Guangzhou
Ultrasonic EVER GREEN Taiwan
PLC Mitsubishi Japan
Hot heating Leister Switzerland

Maintenance
Maintenance of MG-C700 medium speed paper cup should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Package
All machines are packaged by wooden case.

After-sale Service
1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-C700 medium speed paper cup will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty
1. We offer a one-year warranty for the MG-C700 Automatic High Speed Paper Cup Forming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.
