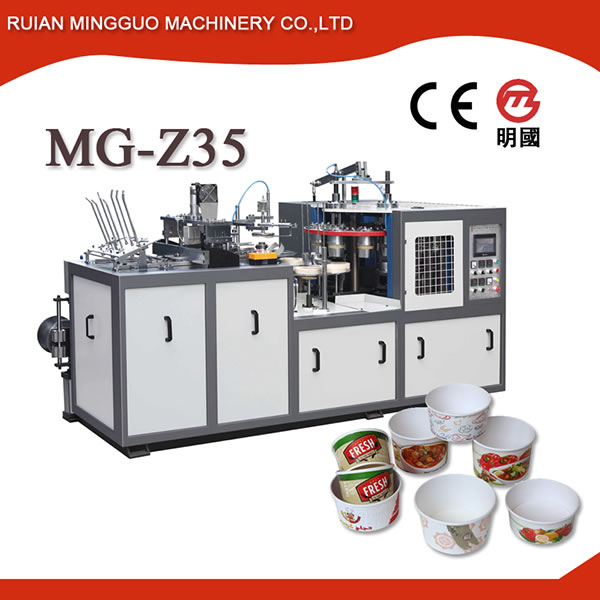

Paper Bowl Forming Machine MG-Z35

Paper bowl machine, paper cup forming machine, disposable cup making machine, automatic paper cup making machine, coffee cup making machine, salad box making machine

Noted for multi-station automatic operation, this paper bowl former integrates a series of processing procedures, such as paper feeding, sealing, heating, bottom cutting, knurling, curling and collecting. This newly developed bowl making machinery can significantly help you get the job done faster, thanks to a great number of modern instruments and devices, like photoelectric sensor, fault detector, robot arm, to name a few.

Detailed Information of Paper Bowl Maker
Production capacity: 45-55 pcs/min
Paper material: 140-300 GSM one-side or two-side PE coated paper

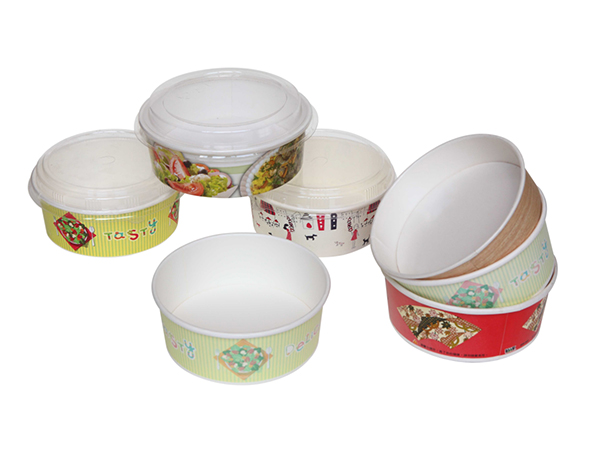

Paper bowl capacity: 35 OZ or customized
Power source: 220V/380V 50Hz/60Hz
Total weight: 3200 KG
Machine size: 2600mm×1200mm×1700mm
Total power: 9KW
Air consumption: Air pressure: 0.4Mpa, air input: 0.2m3/min
Note: Customized products are available

Features of Paper Bowl Forming Machine

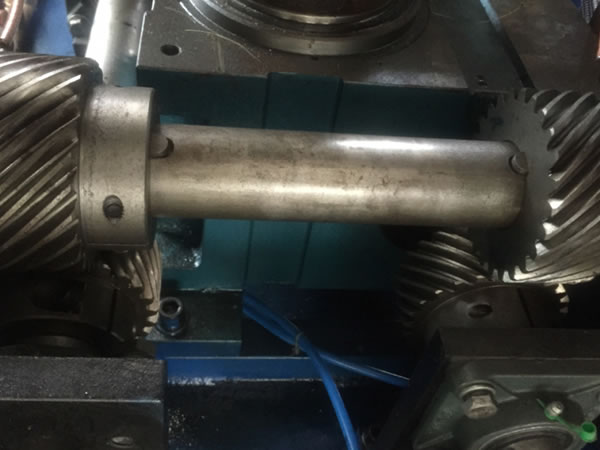

  • Gear transmission is more stable than chain transmission.

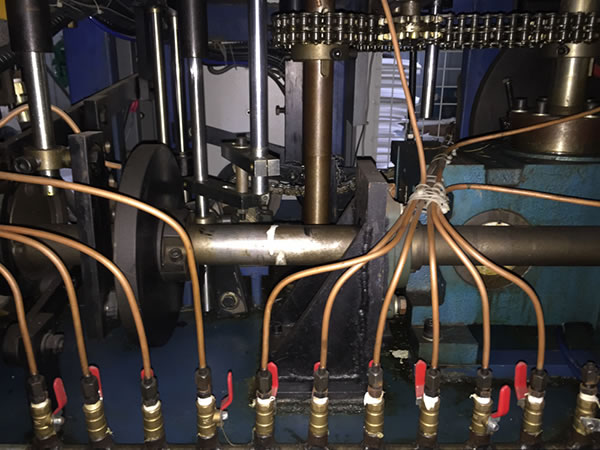

  • A full-automatic lubricating system is applied, thus leading to a long lifespan.

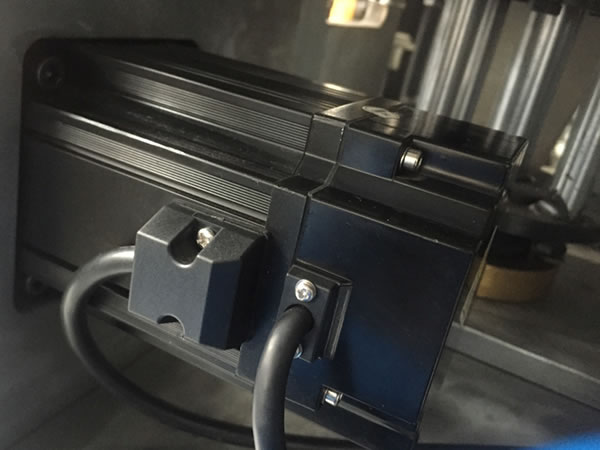

  • This product is equipped with a servo motor, highly efficient and convenient.
  • Ultrasonic is implemented to seal bowls by vibrating 10,000 times per second.

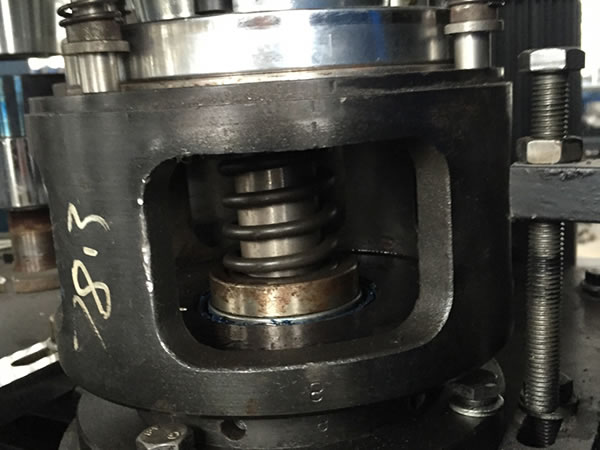

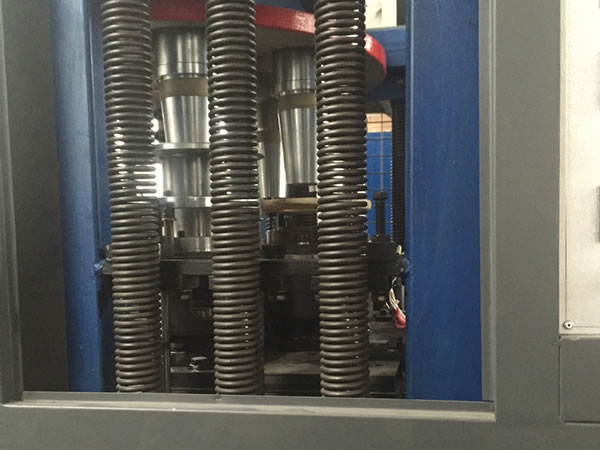

  • The high strength shafts and two huge springs contribute to stable and smooth machine operation.
  • This device is for sending bowl bottoms, which significantly aids in cutting time and manpower.

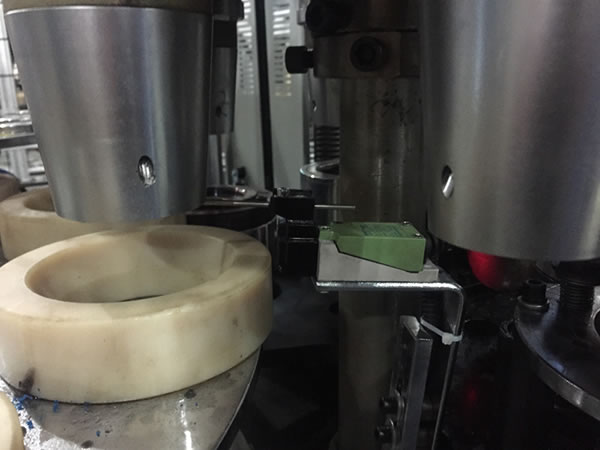

  • The photoelectric sensor and contactless switch protect the paper making instrument from potential damages and guarantees long-time and high efficient work as the machine will automatically shut down when the sensor detects any malfunction or fault.
  • The bottom rolling device provides 5 times embossing force of traditional device. This patented device ensures clear and uniform pattern and low leakage.

Service
Our company provides unsurpassed and consistent service for clients. We can help you resolve problems via e-mail, telephone, video, etc. For better service, our customer service staff will be online around the clock. If needed, we can assign professional engineers or technicians to your company.
