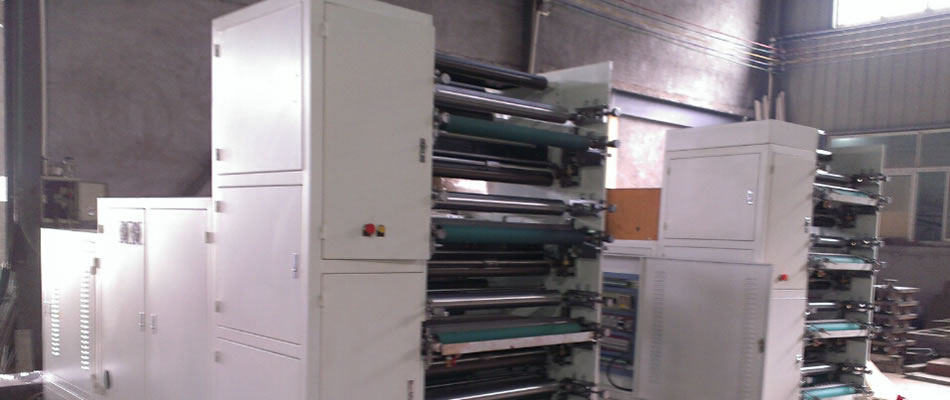

Flexo Printing Machine MG-850

Flexo-printing machine, paper cup printing machine, paper flexo-printing machine for cups, paper cup machine

This flexo printing equipment automatically completes unwinding, web guiding, corona discharging, printing, infrared drying and rewinding. It has attained stellar reputation in the printing industry.

Outstanding Configurations of Flexo Printer
(1) An anilox roller is used to spread ink.
(2) Unwinding and rewinding are both controlled by magnetic powder brake, clutch and tension controller.
(3) The printer provides 360-degree adjustment.
(4) Each printing machine is outfitted with an infrared drier.
(5) In a standby mode, the ink roller is able to run at a low speed to avoid ink becoming dry and hard.
(6) The main motor applies imported frequency converter.

Technical Information of Flexo Printing Press
Printing speed 60m/min
Printing color 4 colors or customized
Max. web width 860mm
Max. unwinding dia. 1400mm
Max. printing width 3850mm
Max. rewinding dia. 1400mm
Printing girth 180-420mm
Dimensions 3500mm*1850mm*2200mm
Machine weight 3800 kg

All machines are packaged by wooden case.

After-sale Service
1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The Flexo Printing Machine MG-850 will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

1. We offer a one-year warranty for Flexo Printing Machine MG-850 from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.
